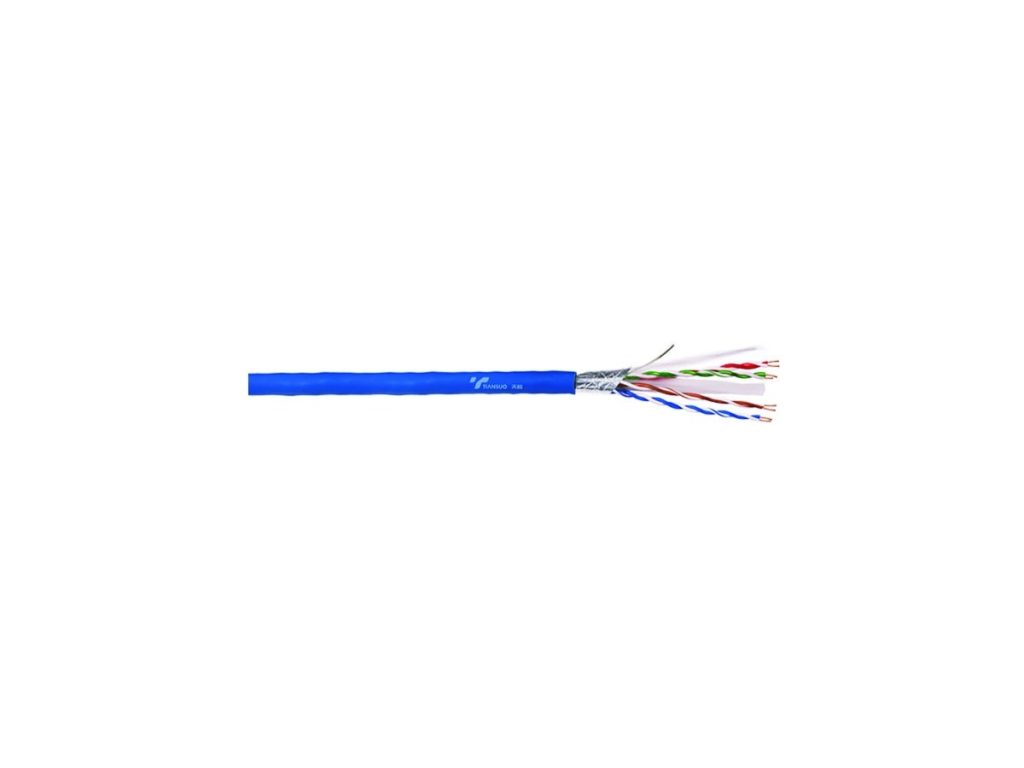

Cat6A SFTP 10G Shielded Twisted Pair Cable

Features

500 MHz bandwidth, 23 AWG 4N OFC, FPE insulation, cross separator, foil and braid shielding.

产品特性

500MHz带宽、23AWG 4N无氧铜、FPE绝缘、十字骨架、铝箔与编织屏蔽。

Applications / 应用

High-capacity network and multimedia data installations.

高速率、大容量网络与多媒体数据工程。

Cat6A for 10Gbps AV-over-IP Installations

LBS6ASSTP-C6A is a Cat6A S/FTP cable rated for 10Gbps network runs, which makes it the practical backbone for AV-over-IP systems in hotels, conference rooms, KTV buildings, broadcast facilities and live-event venues. Where audio and video are transported over the same network — Dante, AVB, AES67, NDI or IP-based control — the cable must support full 10GBASE-T bandwidth and reject interference from the power and lighting circuits that share the same riser or cable tray.

The S/FTP construction pairs each twisted pair with its own foil screen (S/UTP-style per-pair shielding) and adds an overall tinned-copper braid, giving double shielding for the cable. This is the construction to choose when 10G runs sit close to dimmer packs, motors, high-voltage feeders or other network cables, and when the customer expects clean, predictable link performance on the first test.

Cat6 vs Cat6A: What Changes at 10Gbps

For most B2B AV and network projects, Cat6A is the safe choice for new backbone runs because it supports 10Gbps and higher frequencies without replacing the cable when the network is upgraded. For a comparison of shielding options see UTP vs FTP vs SFTP Ethernet Cable.

Ordering and Specification

• Available in standard 305 m boxes or custom lengths and drum lengths for projects.
• Jacket colour, printing, packaging and branding can be reviewed as part of an OEM / ODM project.
• Pair with Cat6A UTP, Cat6A FTP or Cat6A SFTP when a project mixes shielded and unshielded segments.

Cat6A Cable FAQ

Q: Can Cat6A run 10Gbps over full 100 m?
A: Yes. Cat6A is designed for 10GBASE-T up to 100 metres, which is why it is specified for 10G backbones in AV-over-IP and network projects.

Q: What does S/FTP shielding protect against?
A: Per-pair foil plus an overall braid protects against both external interference and crosstalk between pairs, which matters when data cable runs next to power or lighting circuits.

Q: Can LBS supply Cat6A cable with custom printing?
A: Custom jacket printing, colour, length and packaging can be reviewed as part of an OEM / ODM project — send the requirement through the contact page or WhatsApp.
