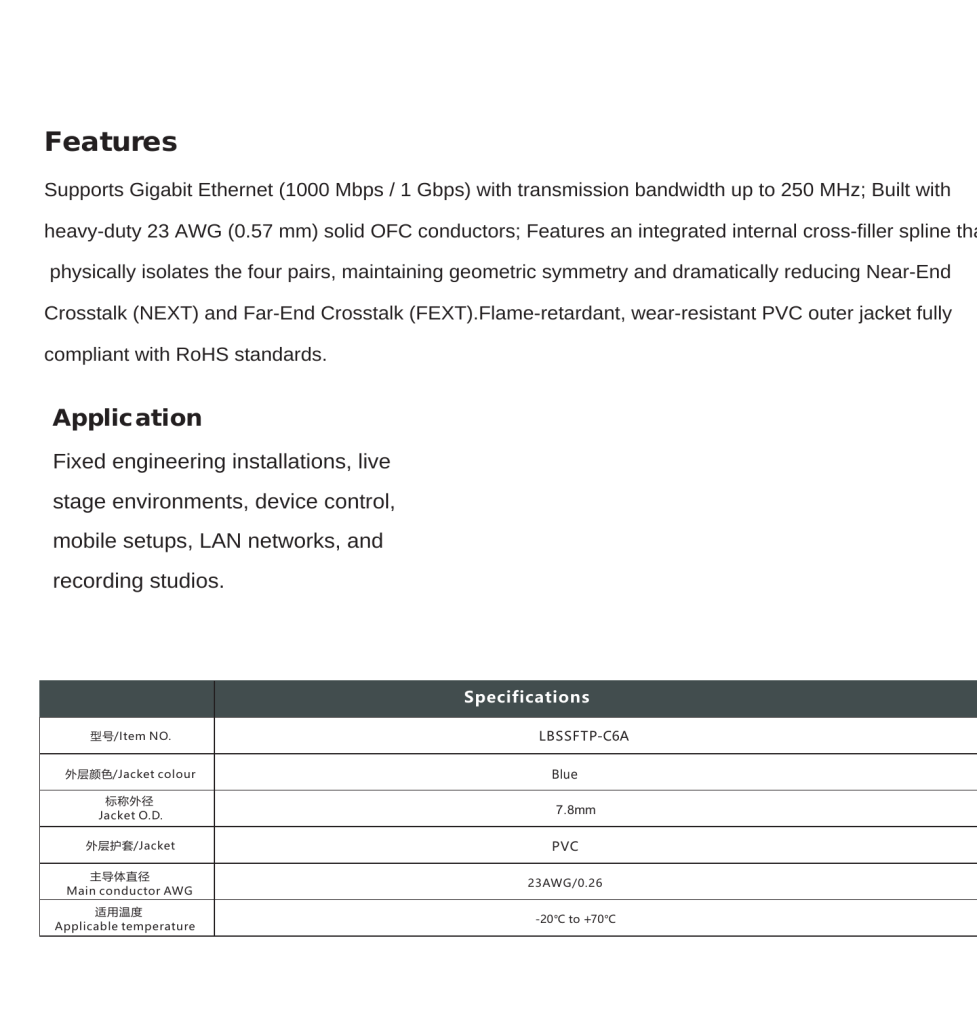

Foil and braided double-shielded Cat6A cable with 23 AWG solid OFC conductors and 250 MHz bandwidth.
| Speed / bandwidth | 1000 Mbps / 250 MHz |
|---|---|
| Jacket color | Blue |
| Jacket O.D. | 7.8 mm |
| Jacket | PVC |
| Main conductor | 23 AWG / 0.26 |
| Shield | AL-Foil + Overall Tinned Copper Braid |
| Temperature | -20°C to 70°C |
Cat6A SFTP Double Shielded Twisted Pair Cable. AL-foil plus tinned copper braid double shield, blue PVC jacket, O.D. 7.8mm, 23AWG solid 4N OFC, cross-filler spline, -20 to +70C. 1Gbps/250MHz. From LBS Catalog 2026.
This Cat6A SFTP cable uses double shielding — aluminium foil plus an overall tinned-copper braid — over the 23AWG solid 4N OFC Cat6A core. The double shield gives the highest noise immunity in the LBS Cat6A family, which makes it the choice for 10Gbps and AV-over-IP runs that share a riser or cable tray with power feeders, dimmer packs, motors or lighting circuits.
Compare the shielding levels in the LBS Cat6A family: Cat6A UTP (unshielded), Cat6A FTP (foil), and this SFTP (foil plus braid). See UTP vs FTP vs SFTP Ethernet Cable for the full comparison, and the LBS6ASSTP-C6A Cat6A S/FTP 10G cable for the double-shielded backbone option with the same construction.
10Gbps backbones, AV-over-IP (Dante, AVB, NDI), broadcast and production networks, industrial environments with electrical noise, and any run where the customer wants maximum shielding margin.
Q: When should I choose Cat6A SFTP instead of FTP?
A: Choose SFTP when the cable runs in electrically noisy environments — near power feeders, dimmers, motors or high-voltage risers — or when the specification demands double shielding for maximum noise margin.
Q: Does Cat6A SFTP support 10Gbps?
A: The LBS 2026 catalog lists this double-shielded Cat6A construction as Gigabit Ethernet (1000 Mbps / 1 Gbps) with transmission bandwidth up to 250 MHz. The double shield provides the highest noise immunity in the family. Where a 10 Gbps / 500 MHz backbone is specified, LBS supplies the Cat6A S/FTP 10G construction (LBS6ASSTP-C6A).
Q: Can LBS supply Cat6A SFTP in custom lengths?
A: Standard 305 m boxes are available, and custom lengths, jacket printing, colour and packaging can be reviewed as part of an OEM / ODM project — send the requirement through the contact page or WhatsApp.
Every Cat6A construction in the LBS range shares the same 23 AWG solid 4N OFC conductor and an internal cross-filler spline that keeps the four pairs separated. The buyer choice is the shielding level — and, for the 10G backbone item, the insulation and bandwidth rating. The table uses the values published in the LBS 2026 product catalog, Cat6A series:
| Item / construction | Shielding | Jacket O.D. | Main conductor | Catalogued speed / bandwidth |
|---|---|---|---|---|
| Cat6A UTP (LBSUTP-C6A) Unshielded twisted pair |
None | 6.2 / 6.4 / 7.2 mm | 23 AWG / 0.25 | Gigabit Ethernet (1000 Mbps / 1 Gbps), up to 250 MHz |
| Cat6A FTP (LBSFTP-C6A) Foil shield + tinned-copper drain wire |
AL-foil + drain wire | 7.2 mm | 23 AWG / 0.25 | Gigabit Ethernet (1000 Mbps / 1 Gbps), up to 250 MHz |
| Cat6A SFTP (LBSSFTP-C6A) (this page) AL-foil plus overall tinned-copper braid |
Foil + braid (double) | 7.8 mm | 23 AWG / 0.26 | Gigabit Ethernet (1000 Mbps / 1 Gbps), up to 250 MHz |
| Cat6A S/FTP 10G (LBS6ASSTP-C6A) Individually foil-shielded pairs + overall tinned-copper braid, Foam-PE insulation |
Foil per pair + braid | 8 mm | 23 AWG / 0.26 | 10 Gigabit (10 Gbps), up to 500 MHz |
All four constructions: blue PVC jacket, applicable temperature -20°C to +70°C. Source: LBS 2026 product catalog, Cat6A series. Confirm the exact SKU and construction for your project before ordering.
Selection rule: pick the lowest shielding level the installation actually needs — UTP for clean dedicated data/AV runs, FTP where the run passes near power feeders or lighting circuits, SFTP on stage floors, touring racks and high-EMI routes, and the Cat6A S/FTP 10G item where a 10 Gbps / 500 MHz backbone is specified. For the shielding comparison in detail, see the UTP vs FTP vs SFTP Ethernet Cable guide.
Cat6A 系列对比：四种结构同为 23 AWG 实心 4N 无氧铜导体并带十字骨架，区别在屏蔽等级；表中数值取自 LBS 2026 产品目录 Cat6A 系列页。
