PRODUCT CATEGORY
Microphone and multichannel stage snake cable for professional equipment, stage systems and installed projects.
SPECIFICATION CATALOG
Open a product to review its model, construction and technical specification before sending an inquiry.
2-core shielded balanced microphone bulk cable, 2x0.5mm², for long-distance routing — tinned copper conductors, PE insulation and AL-Foil Mylar + TC braided…
View specifications →
Finished XLR male-to-female microphone patch cable, 2x0.5mm², for long-distance patching — tinned copper conductors, double shielding, flexible EPVC jacket and zinc alloy…
View specifications →
2-core shielded balanced microphone bulk cable, 2x0.3mm², for standard routing — tinned copper conductors, PE insulation and AL-Foil Mylar + TC braided…
View specifications →
Finished XLR male-to-female microphone patch cable, 2x0.3mm², for standard patching — tinned copper conductors, double shielding, flexible EPVC jacket and zinc alloy…
View specifications →
4-channel stage drop box and breakout snake cable (LBSDMX-4CH), individually jacketed and shielded pairs, 22 AWG / 0.35 main conductor, 3.1 mm…
View specifications →
6-channel stage drop box and breakout snake cable (LBSDMX-6CH), individually jacketed and shielded pairs, 22 AWG / 0.35 main conductor, 3.1 mm…
View specifications →
8-channel stage drop box and breakout snake cable (LBSDMX-8CH), individually jacketed and shielded pairs, 22 AWG / 0.35 main conductor, 3.1 mm…
View specifications →
12-channel stage drop box and breakout snake cable (LBSDMX-12CH), individually jacketed and shielded pairs, 22 AWG / 0.35 main conductor, 3.1 mm…
View specifications →
16-channel stage drop box and breakout snake cable (LBSDMX-16CH), individually jacketed and shielded pairs, 22 AWG / 0.35 main conductor, 3.1 mm…
View specifications →
20-channel stage drop box and breakout snake cable (LBSDMX-20CH), individually jacketed and shielded pairs, 22 AWG / 0.35 main conductor, 3.1 mm…
View specifications →
24-channel stage drop box and breakout snake cable (LBSDMX-24CH), individually jacketed and shielded pairs, 22 AWG / 0.35 main conductor, 3.1 mm…
View specifications →
28-channel stage drop box and breakout snake cable (LBSDMX-28CH), individually jacketed and shielded pairs, 22 AWG / 0.35 main conductor, 3.1 mm…
View specifications →
32-channel stage drop box and breakout snake cable (LBSDMX-32CH), individually jacketed and shielded pairs, 22 AWG / 0.35 main conductor, 3.1 mm…
View specifications →
36-channel stage drop box and breakout snake cable (LBSDMX-36CH), individually jacketed and shielded pairs, 22 AWG / 0.35 main conductor, 3.1 mm…
View specifications →
40-channel stage drop box and breakout snake cable (LBSDMX-40CH), individually jacketed and shielded pairs, 22 AWG / 0.35 main conductor, 3.1 mm…
View specifications →
44-channel stage drop box and breakout snake cable (LBSDMX-44CH), individually jacketed and shielded pairs, 22 AWG / 0.35 main conductor, 3.1 mm…
View specifications →
48-channel stage drop box and breakout snake cable (LBSDMX-48CH), individually jacketed and shielded pairs, 22 AWG / 0.35 main conductor, 3.1 mm…
View specifications →SPECIFY BY APPLICATION
A lighting network, a balanced microphone line and a multichannel snake are specified differently: shield coverage and impedance drive the DMX run, conductor matching drives the balanced line, and channel separation drives the stage box run.
Lighting desks, dimmers and fixtures are daisy-chained on one control line, so shield coverage and conductor consistency decide whether the run stays error-free. The LBSDMX range uses flexible shielded 4N OFC conductors with a single high-density OFC spiral shield at 85%+ coverage, an EPVC matt jacket and a nominal 6.3 mm outer diameter, listed for DMX512 stage lighting and professional equipment. Braiding density runs from 64 / 2 × 0.25 up to 168 / 2 × 0.50. For long runs the -2 double-shielded version adds AL-foil plus tinned-copper spiral shielding in a 120 ohm construction for 100 m+ runs. Operating temperature -20 °C to 70 °C, jacket in black, brown or dark green.
A balanced line cancels the interference it picks up, which only works when both conductors are identical and the shield covers the pair. LBSMIC-1 is a 2-core shielded balanced microphone cable built on high-purity multi-stranded 4N OFC conductors with PE insulation, AL-foil plus high-density OFC spiral shielding and a flexible EPVC outer jacket, compatible with standard 3-pin XLR and TRS connectors. Where the project needs cable out of the box, LBSMIC-2 is a finished XLR male-to-female microphone patch cable, and ready-to-use XLR cable assemblies are available for OEM / ODM projects.

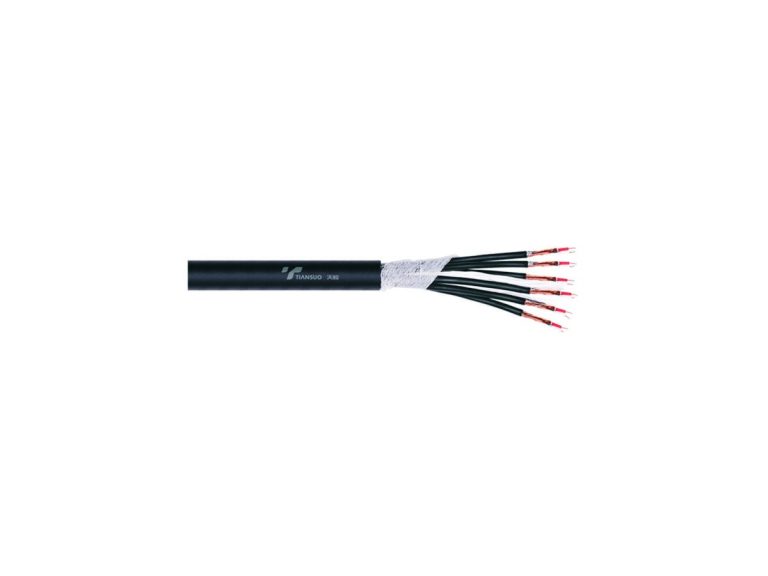

Drum risers and stage boxes need many channels inside one jacket while keeping the signals apart. The LBSDMX multichannel range provides individually jacketed and shielded channels for stage box and studio equipment connections, in 4, 6, 8, 12, 16, 20, 24, 28, 32, 36, 40, 44 and 48 channel configurations. Each channel uses a 22 AWG / 0.35 main conductor with a 3.1 mm inner jacket and an EPVC overall jacket; operating temperature -20 °C to 70 °C.
RELATED RANGES AND GUIDES
Speaker cable sits in its own category, and the Cat5e, Cat6 and Cat6A UTP, FTP and SFTP constructions sit in the network range. The guides below cover DMX versus microphone cable, 2-core versus 4-core DMX construction and multichannel snake selection.
SELECTION GUIDES
Each guide answers one specification question and links back to the relevant products.
BUYER ROUTES
Each route page sets out what that buyer has to settle before a quotation is issued. Open your route, or send the requirement straight to the factory.
Rental and touring companies buy cable differently from fixed installers. This route covers the tour-grade speaker cable, multichannel snake cable, microphone and signal cable and connectors used in rental inventories.
Request a Cable Specification →Speaker, signal, DMX512, Ethernet and HDMI cable supplied from one Guangzhou factory, with the cable-selection and project-ordering information an installation job needs.
Request a Cable Specification →The OEM route lists what can be customised - construction, jacket, printing, length, packaging and branding - and how private-label cable projects are handled.
Request an OEM Quote →OEM / ODM inquiry
Send the model, specification, quantity and destination. Our team will reply with the next step.
