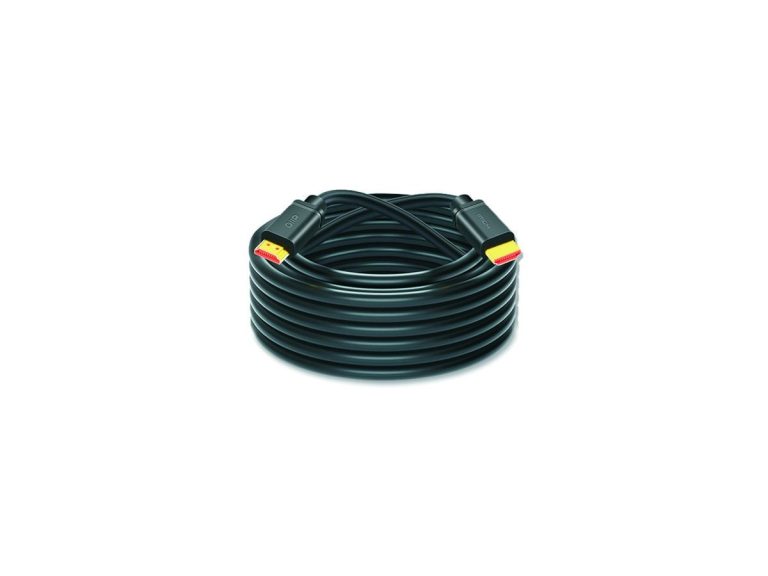

LBS-2000
Active Optical HDMI Cable
Active optical HDMI cable for 4K60 and long-distance transmission up to 200 meters.
View specifications →PRODUCT CATEGORY
HDMI & AV Cables
Active optical HDMI, high-speed HDMI, VGA and DVI cable options for AV equipment connections.
SPECIFICATION CATALOG
Compare available products
Open a product to review its model, construction and technical specification before sending an inquiry.

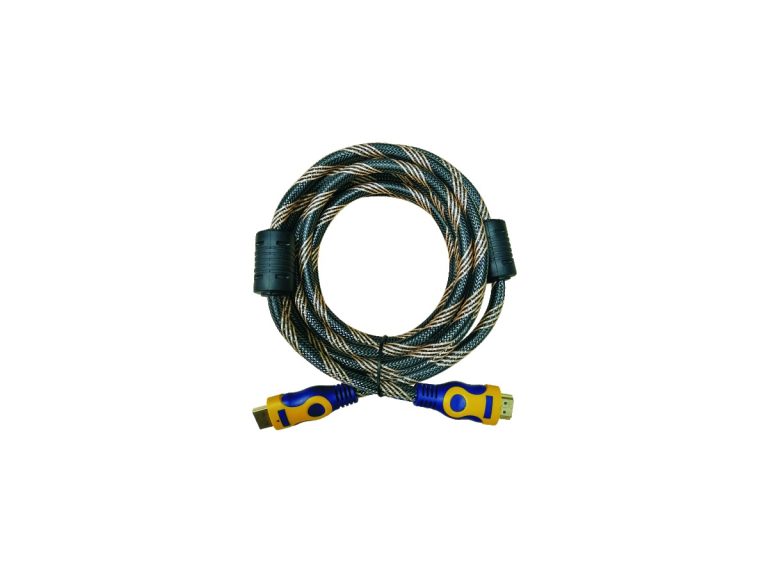

LBS-1000
High-Speed HDMI Cable
High-speed HDMI cable with 24 AWG OFC conductor and multi-layer shielding.
View specifications →

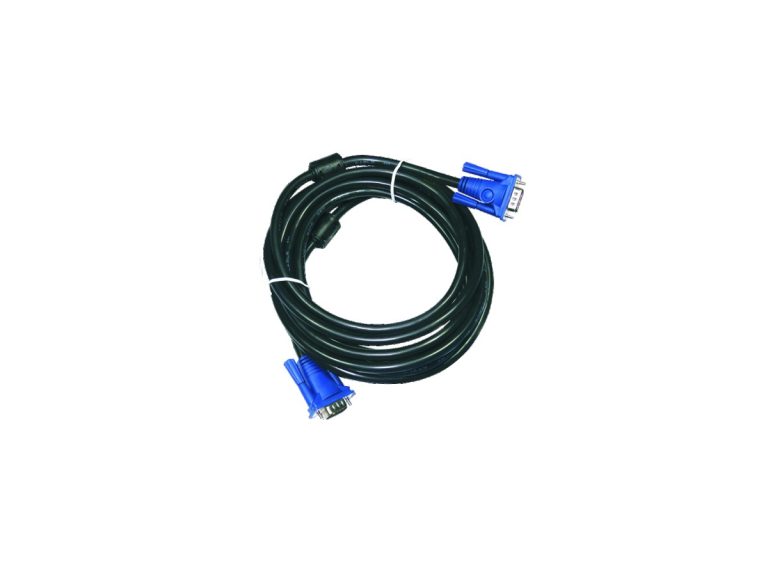

VGA3+9
VGA 3+9 Video Cable
15-pin male-to-male VGA cable with shielded RGB signal cores and ferrite protection.
View specifications →
DVI-D(24+1)
DVI-D Dual-Link Video Cable
Dual-link DVI-D cable supporting high-resolution digital video transmission.
View specifications →SPECIFY BY SIGNAL ROUTE
Which AV and video cable fits the installation?
Distance drives the HDMI choice, the equipment port drives the VGA or DVI choice, and both have to be settled before a quotation is issued. The blocks below open the construction that matches each case.
Long HDMI runs and 4K signal distribution
Above a few metres the limit is usually the copper HDMI assembly itself, which is why long runs are specified as an active optical construction. LBS-2000 active optical HDMI cable is listed for 4K60 and 3D signal formats with a maximum length of up to 200 m and a customisable length, at 1920 x 1200 / 4K60 / 3D, 6 Gbps per channel and 18 Gbps total, to the HDMI 2.0 / HDCP 2.2 standard. Length is the first thing to fix for a display wall, a lecture hall or a projector run, because the construction changes with the distance.
- Active optical HDMI cable, up to 200 m
- Long distance HDMI 4K: fibre vs copper at 15 m, 30 m and 100 m
In-rack and short HDMI connections
Short assemblies inside a rack still have to hold a clean signal next to power and network cabling. LBS-1000 high-speed HDMI cable uses a 24 AWG 99.96% OFC conductor in a 19+1 core construction with three-layer tinned copper braid shielding and dual ferrites, and is available in multiple lengths. It is the copper assembly for equipment-to-equipment connections where the run stays inside the rack or the AV cabinet.
Request a Cable Specification →Legacy displays: VGA and DVI
Projectors, control-room monitors and existing AV racks often still terminate on VGA or DVI, so the cable has to match the port that is already installed. VGA 3+9 is a 15-pin male-to-male cable built from 3 shielded RGB cores plus 9 auxiliary signal wires with foil and 128-strand tinned copper braid shielding. DVI-D Dual-Link is a DVI-D 24+1 dual-link cable listed for 2560 x 1600 at 60 Hz and 1920 x 1080 at 120 Hz. Both are specified by the connector on the equipment, not by the display resolution alone.
- VGA 3+9 video cable, 15-pin male to male
- DVI-D dual-link video cable, 24+1
- VGA vs DVI video cable: which connection fits the installation
RELATED RANGES AND GUIDES
Continue specifying
Speaker, audio signal, network and connector cables sit in their own categories. The guides below cover AV-over-IP distribution and hotel AV installation.
SELECTION GUIDES
Guides for choosing within this category
Each guide answers one specification question and links back to the relevant products.
BUYER ROUTES
Buying as a distributor, installer, OEM brand or rental company?
Each route page sets out what that buyer has to settle before a quotation is issued. Open your route, or send the requirement straight to the factory.
Installers and system integrators
Speaker, signal, DMX512, Ethernet and HDMI cable supplied from one Guangzhou factory, with the cable-selection and project-ordering information an installation job needs.
Request a Cable Specification →OEM and private-label brands
The OEM route lists what can be customised - construction, jacket, printing, length, packaging and branding - and how private-label cable projects are handled.
Request an OEM Quote →
