Flexible shielded 4N OFC signal cable for DMX512 stage lighting and professional equipment.
| Item No. | LBSDMX128035 |
|---|---|
| Jacket color | Black / brown / dark green optional |
| Jacket O.D. | 6.3 mm |
| Jacket | EPVC MATT |

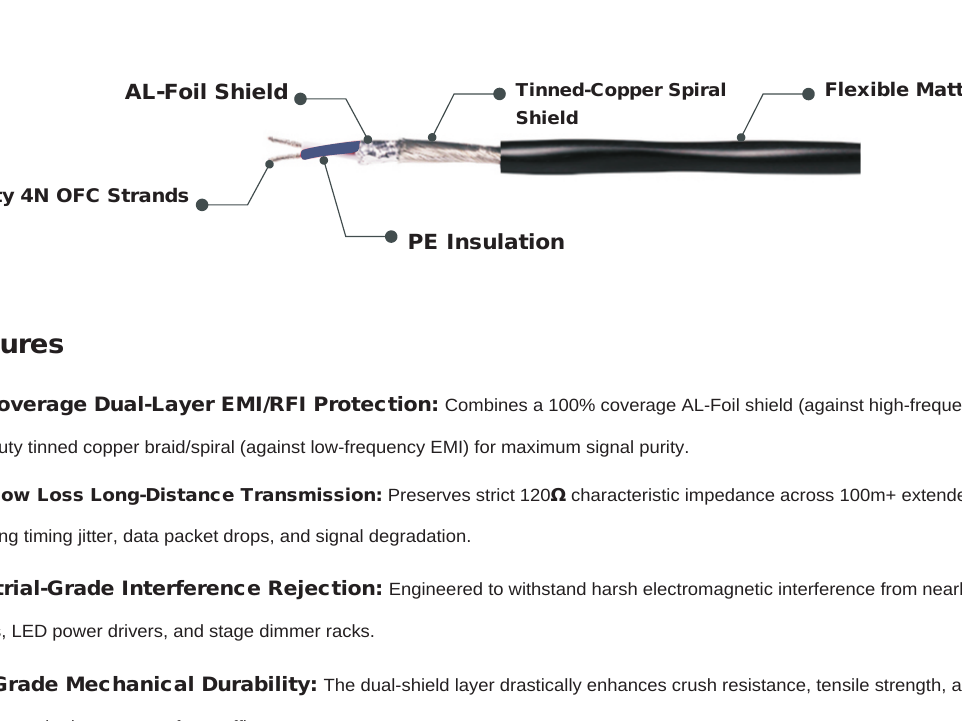

| Shielding | Single shield (high-density OFC spiral, 85%+ coverage). Double-shielded version (AL-Foil + tinned-copper spiral, 120 ohm, 100m+ runs) available with -2 suffix. |
| Braiding | 128 / 2 × 0.35 |
| Applicable temperature | -20°C to 70°C |
Elastic PVC jacket, PE insulation, foil and dense copper shielding for reliable DMX512 signal transmission.
弹性PVC护套、PE绝缘、铝箔及致密铜丝屏蔽，保障DMX512信号稳定传输。
DMX512 lighting control, stage equipment, KTV and professional show installations.
DMX512灯光控制、舞台设备、KTV与专业演出应用。
The LBSDMX series can be produced to your specification for branded or project requirements:
Contact us for OEM DMX512 lighting control cable quotation →
Compare the LBSDMX audio signal and DMX512 lighting control cable models to match the conductor size to your run length:
| Model | Braiding (cores × conductor) | Typical use | Product page |
|---|---|---|---|
| LBSDMX64025 | 64 / 2 × 0.25 | Short mic leads, patch | View |
| LBSDMX96035 | 96 / 2 × 0.35 | Standard mic runs | View |
| LBSDMX128035 | 128 / 2 × 0.35 | Balanced mic, longer runs | Current page |
| LBSDMX144050 | 144 / 2 × 0.50 | Heavy-duty, long runs | View |
Multichannel stage snakes from 4 to 48 channels are also available in the LBSDMX multichannel series.
Standard models are available from stock in 100m rolls. For OEM orders with custom printing and packaging, please send your project requirements for a tailored quotation.
Yes. Custom jacket colours and permanent cable printing with your brand name, model code and specification are available for OEM orders.
Yes, LBS offers pre-assembled XLR terminated DMX512 lighting control cables on request. Please confirm your connector specification, length and quantity.
Yes, the LBSDMX128035 uses foil plus dense copper shielding and a twisted pair construction suitable for balanced DMX512 lighting control and line-level audio signals.
DMX512 standard: 110 ohm characteristic impedance, suitable for DMX512 lighting control networks.
PRODUCT SOURCING FAQ
These answers use the product information shown on this page. Final project terms depend on the confirmed specification.
Please provide the required specification, length or packaging unit, quantity, application and destination country or region.
Construction, jacket color, printing, length, packaging and branding can be reviewed according to the confirmed product and project quantity.
Compare the technical specification table on this page, then send LBS the application and required dimensions if you need help confirming a variant.
